Parametric Modeling

No Planer elements in my geometry

about 7 years ago by Andres Roncal

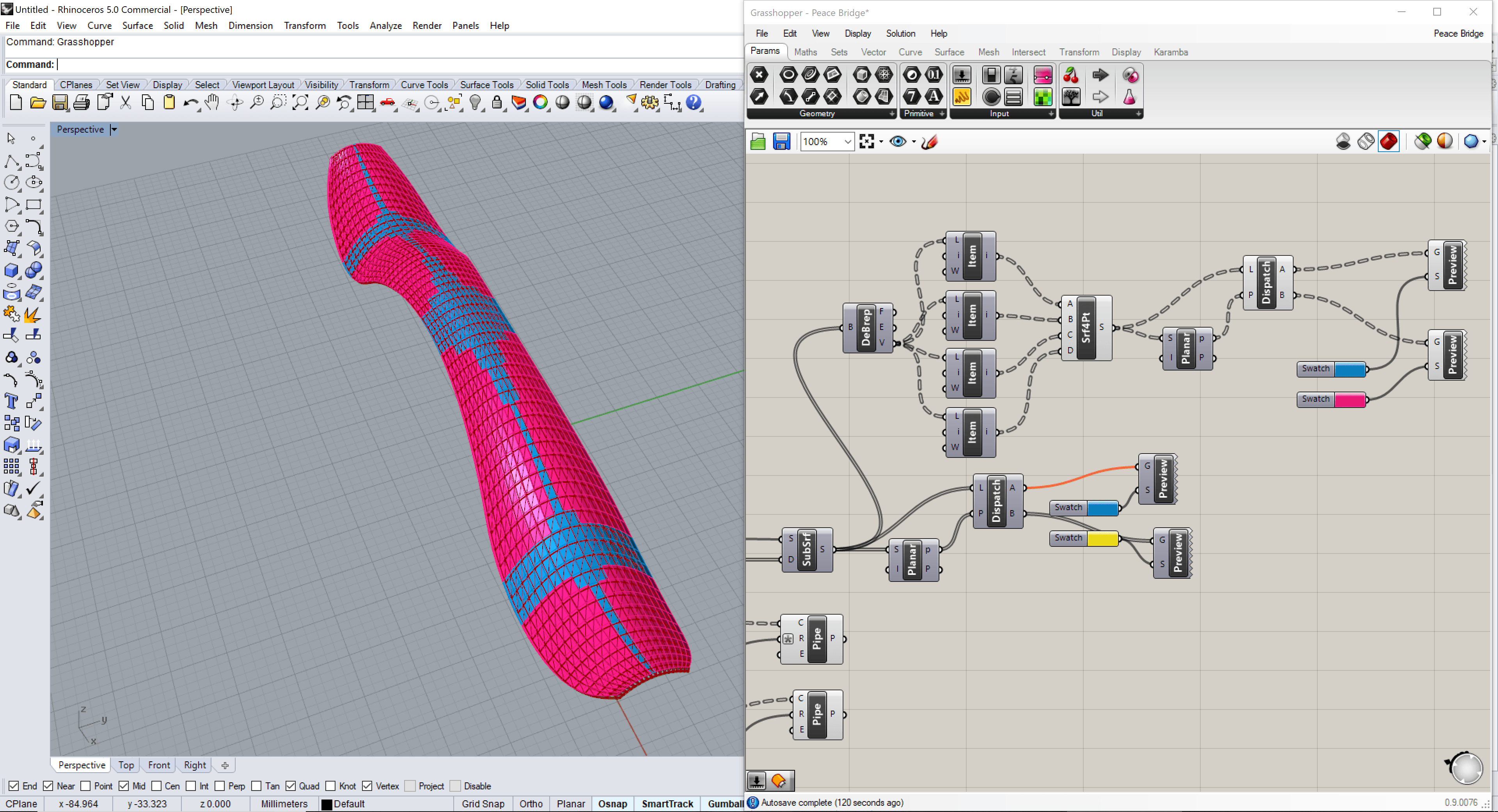

No Planer elements in my geometry, any suggestions please?

4 Answers

xenayb about 5 years ago

Same here!!! Any explanation 2 years after??

Edmondo Rumori over 5 years ago

Hi Rodrigo, I have the same issue also in my definition since I have only surfaces that are not planar. What it could be the problem? Any idea? Thanks

Astrid Parinder over 6 years ago

Same for me

Andrea Basso about 7 years ago

Hi, I have a similar problem with the construction of the glass surface. There are no planar elements with the first subdivision and even with the creation of the 4 point surfaces there aren't as many as you. I used the same number for the sliders to recreate the geometry of the bridge. Have I done something wrong while modelling? How can I improve the planarity of the elements?
